Counting Triangles

Multivariate Sumcheck

A breakdown of its efficient implementation

Sumcheck is introduced in Chapter 4 of Proofs, Arguments, and Zero-Knowledge as a core building block of interactive proofs. The chapter outlines the power and versatility of Sumcheck, a tool Thaler describes as “the hammer” that makes many interactive proof problems look like a nail. Included, are details on how Sumcheck can be used to prove the computation of counting triangles in a graph with little additional work. This rare class of proof is considered “Super-Efficient” due to the lean cost profile of the Prover and Verifier. In this post, we implement the IP and break down the code.

Warning

This will not go into as much detail as Proofs, Arguments, and Zero-Knowledge. Read chapters 1-4 to be introduced to the subject matter.

The Building Blocks

Finite Fields

All of the math in interactive proofs happen over a finite field. Here, we define a very simple finite field size \(2^{61}\) for this example. We will refer to elements of that field as Felt which is an abbreviation for Field Element.

Finite Field Element
class Felt:
    def __init__(self, val, prime=2 ** 61 - 1):
        self.val = val % prime
        self.prime = prime

    @classmethod
    def random(cls, prime=2 ** 61 - 1):
        return cls(random.randrange(0, prime), prime)

    @classmethod
    def from_randomness(cls, randomness, prime=2 ** 61 - 1):
        return cls(int.from_bytes(randomness, "big"), prime)

    def __add__(self, felt):
        assert self.prime == felt.prime
        return Felt((self.val + felt.val) % self.prime, self.prime)

    def __sub__(self, felt):
        assert self.prime == felt.prime
        return Felt((self.val - felt.val) % self.prime, self.prime)

    def inv(self):
        if self.val == 0:
            return Felt(0, self.prime)
        return self ** (self.prime - 2)

    def __mul__(self, felt):
        assert self.prime == felt.prime
        return Felt((self.val * felt.val) % self.prime, self.prime)

    def __pow__(self, degree):
        n = degree % (self.prime - 1)
        num = pow(self.val, n, self.prime)
        return Felt(num, self.prime)

    def __eq__(self, other):
        return self.val == other.val

Evaluating MultiLinear Extensions

Multilinear polynomials can be specified by their evaluations over the boolean hypercube. Thaler gives an efficient formula to evaluate a multilinear polynomial at a single point given the hypercube evaluations using dynamic programming.

Evaluate Multilinear Extension
def eval_mle(evals, point):
    def memo(r, n):
        if n == 1:
            return [(Felt(1) - r[0]), r[0]]
        return [
            x
            for expr in memo(r, n - 1)
            for x in [expr * (Felt(1) - r[n - 1]), expr * r[n - 1]]
        ]

    cache = memo(point, len(point))
    return sum([x * y for (x, y) in zip(evals, cache)], Felt(0))

Evaluating Low-Degree Extensions

Univariate polynomials can be specified by \(degree(n) + 1\) points. We can use lagrange interpolation and rely on cancellations and batch inversions to achieve fast evaluations of a polynomial defined by its evaluations from \(0..degree(n)\).

Evaluate Low-Degree Extension
def eval_ule(evals, r):
    if 0 <= r.val < len(evals):
        return evals[r.val]

    total, multiplier, inversions = Felt(0), Felt(1), Felt(1)

    for k in range(1, len(evals)):
        multiplier *= r - Felt(k)
        inversions *= Felt(-k)

    multiplier *= inversions.inv()
    total += multiplier * evals[0]

    for i in range(1, len(evals)):
        multiplier *= (
            (r - Felt(i - 1))
            * ((r - Felt(i)) * Felt(i)).inv()
            * Felt(-(len(evals) - i))
        )
        total += multiplier * evals[i]

    return total

The Boolean Hypercube

The boolean hypercube is all combinations of \(0\) and \(1\) for a given \(n\) which defines the length. Sumcheck verifies the sum of a polynomials evaluation over the boolean hypercube.

The Boolean Hypercube
from itertools import product
def hypercube(n):
    return [list(i) for i in product([Felt(0), Felt(1)], repeat=n)]

Fiat-Shamir

In order to make the protocol in this post non-interactive, the Prover creates a transcript that the Verifier can use to verify the Prover’s computations. The Prover must draw verifiable randomness from a hashchain of public inputs and intermediate elements of the protocol.

Example Transcript Class
class SumcheckTranscript:
    def __init__(self, hashchain=None):
        self.hashchain = hashchain or sha256()
        self.evaluations = []
        self.degree = None
        self.rounds = None
        self.randoms = []

    def write_evaluations(self, lst):
        for f in lst:
            self.hashchain.update(f.val.to_bytes(8, "big"))
        self.evaluations.append(lst)

    def write_sum(self, c):
        self.hashchain.update(c.val.to_bytes(8, "big"))
        self.sum = c

    def write_degree(self, d):
        self.hashchain.update(d.to_bytes(2, "big"))
        self.degree = d

    def write_random(self, r):
        self.hashchain.update(r.val.to_bytes(8, "big"))
        self.randoms.append(r)

    def write_rounds(self, rounds):
        self.hashchain.update(rounds.to_bytes(2, "big"))
        self.rounds = rounds

    def randomness(self):
        return self.hashchain.digest()

Sumcheck

High Level Overview

Sumcheck is a procedure where the Prover commits to the sum of a polynomial’s evaluations over the boolean hypercube. Each round, the Prover is forced to fix a variable of the multivariate polynomial with a random field element \(r\) provided by the Verifier.

\[g_j(i) = \sum_{(x_{j+1},...,x_v )∈\{0,1\}^{v−j}} g(r_1,...,r_{j−1},i,x_{j+1},...,x_v)\]

At the start of each round, the Prover sums up the unfixed variables over the boolean hypercube to come up with \(S_i\), a polynomial that can be used by the Verifier to check the integrity of the Prover’s actions. By the end of the protocol, the Verifier can be convinced that the polynomial did indeed sum to the claimed value, by comparing \(g(r_1,...r_v)\) to the \(S_v(r_v)\).

The Efficient Prover

When the Sumcheck polynomial \(g\) is made up of the product of many different multilinear polynomials (in the form of \(g = p_1 * p_2 ... p_k\)), the prover can take advantage of a huge optimizations. The evaluations of \(p_i\) can be stored separately in the Prover’s internal data structure. Our implementation covers the scenario for when \(g = p_1 * p_2\) because that is all that is needed for counting triangles.

class SumcheckProver:

    def __init__(self, p1, p2, c, randomness=None):
        self.rounds = int(log2(len(p1)))
        self.transcript = SumcheckTranscript(randomness)
        self.c = c
        self.p1 = p1
        self.p2 = p2
        self.rs = []

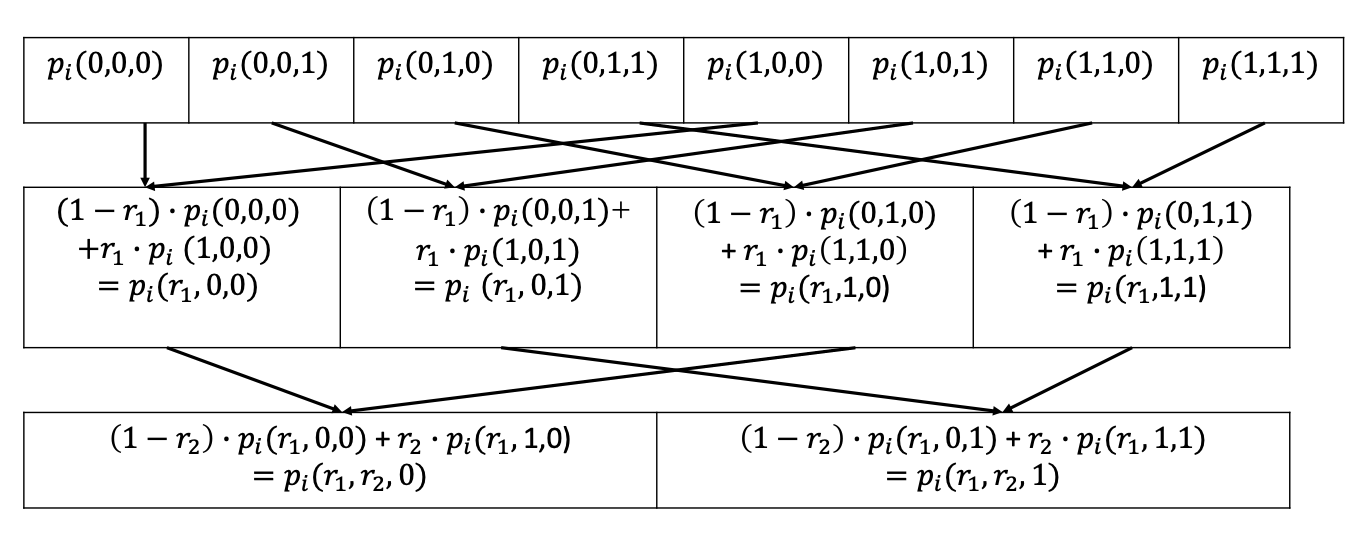

We start the Prover by storing the evaluations of \(p_1\) and \(p_2\). In each round, we half the data structure leveraging Leema 3.8’s \[p(x_1,x_2,...,x_l) = x_1 · p(1,x_2,...,x_l)+(1−x_1)· p(0,x_2,...,x_l)\] Below is a visual from the book.

Source: Proofs, Arguments, and Zero-Knowledge

The Prover now sets \(x_i\) to \(r\) and updates its data structure in-place. Just like in the picture, we can divide the evaluations in half and zip those together in order to get the values we need for the calculation.

    def execute_round(self, r):
        self.rs.append(r)
        half = len(self.p1) // 2
        self.p1 = [
            (Felt(1) - r) * a + r * b for (a, b) in zip(self.p1[:half], self.p1[half:])
        ]
        self.p2 = [
            (Felt(1) - r) * a + r * b for (a, b) in zip(self.p2[:half], self.p2[half:])
        ]
        self.transcript.write_evaluations(self.evaluate_points())

The power of this is that we no longer have to sum up \(x_{i+1}..x_l\) on the hypercube to get the polynomial \(S_i\) to send to the Prover. We can take advantage of the properties of the multilinear polynomial in order to save the Prover significant time.

    def evaluate_points(self):
        half = len(self.p1) // 2
        zero, one, two = Felt(0), Felt(0), Felt(0)
        for i in range(half):
            zero += self.p1[i] * self.p2[i]
            one += self.p1[half + i] * self.p2[half + i]
            two += (Felt(2) * self.p1[half + i] - self.p1[i]) * (
                Felt(2) * self.p2[half + i] - self.p2[i]
            )
        return [zero, one, two]

Since the product of 2 multilinear polynomials will be quadratic (degree 2), we can specify \(S_i\) by sending 3 points to the Verifier. Thaler describes a way to do this in a single pass. This is possible due to the structured nature of the hypercube evaluations and the fact that the leading bit of the hypercube will be \(0\) for the first half of the evaluations and \(1\) for the second half.

To get \(S_i(2)\), we leverage Equation 4.13 \[h(r_1,...,r_{i−1},2,b_{i+1},...,b_l) = 2·h(r_1,...,r_{i−1},1,b_{i+1},...,b_l)−h(r_1,...,r_{i−1},0,b_{i+1},...,b_l)\] We take this opportunity to multiply the \(p_1\) and \(p_2\) together in order to provide the correct \(S_i\) to the Verifier.

The Verifier

The Verifier can take these sumcheck claims and make sure the Prover is being honest by verifying, that the polynomial \(S_i(0)\) and \(S_i(1)\) sum to the correct values and that \(degree(S_i) <= degree(g)\). In this implementation, the Verifier verifies the all rounds of the fiat-shamir transcript at once.

    def verify(self):
        assert self.transcript.sum == eval_ule(
            self.transcript.evaluations[0], Felt(0)
        ) + eval_ule(self.transcript.evaluations[0], Felt(1))
        assert len(self.transcript.evaluations[0]) <= self.transcript.degree + 1

        for i in range(self.transcript.rounds-1):
            g_l = eval_ule(self.transcript.evaluations[i], self.transcript.randoms[i])
            assert len(self.transcript.evaluations[i + 1]) <= self.transcript.degree + 1
            g_r = eval_ule(self.transcript.evaluations[i + 1], Felt(0)) + eval_ule(
                self.transcript.evaluations[i + 1], Felt(1)
            )
            assert g_l == g_r

At the end of Sumcheck protocol, the Verifier must also evaluate an oracle of \(g(r_1..r_{log(n)})\) to complete the verification. However, when this happens is dependent on the larger protocol so we left it out of the scope of this Verifier.

Counting Triangles

An efficient way to calculate the number of triangles in a graph is to take the adjacency matrix and square it, then multiply it by the adjacency matrix again and divide by 6. \[Triangles = (adj^2 * adj) / 6\] Using Sumcheck and the Super-Efficient IP for MatMult protocol which Thaler outlines in Section 4.4, we can Prove the calculation of the Triangle count with a small amount of extra work.

The Calculation

Let’s calculate the number of triangles in a square that is bisected by a line to form 2 triangles.

Graph definition
class Graph(dict):
    def __init__(self, graph):
        super().__init__(graph)

    def toAdjacencyMatrix(self):
        n = len(self)
        matrix = [[0] * n for _ in range(n)]
        for i in range(n):
            for j in range(n):
                matrix[i][j] = (
                    1 if j in self[i] else 0
                )
        return matrix
g = Graph({0: {1, 2}, 1: {2, 0, 3}, 2: {0, 1, 3}, 3: {2, 1}})

a = g.toAdjacencyMatrix()

n = len(a)

a2 = [[0] * n for _ in range(n)]

for i in range(n):
    for j in range(n):
        for k in range(n):
            a2[i][j] += a[i][k] * a[k][j]
c = 0

for i in range(n):
    for j in range(n):
        c += a[i][j] * a2[i][j]

c // 6

The Prover

Since we interpret the flattened \(a^2\) and \(a\) as \(\tilde{a}^2\) and \(\tilde{a}\) respectively, the Prover does not have to do any additional computation to begin the protocol. We can use these values to compute a proof thanks to Sumcheck and the MatMult Protocol. We initiate the Counting Triangles Proof using these values along with \(c\).

class TriangleProver:
    def __init__(self, a, a2, c):
        self.a = a
        self.a2 = a2
        self.c = c
        self.logn = int(log2(len(self.a)))
        self.transcript = TrianglesTranscript()
        self.transcript.write_a(self.a)

Now we have to prove \(\tilde{a}^2 * \tilde{a}\) as the first phase of the protocol. We instantiate Sumcheck and create a proof to add to the Counting Triangles transcript.

    def prove(self):
        p1 = SumcheckProver(
            self.a2,
            self.a,
            self.c,
            self.transcript.hashchain.copy(),
        )
        p1.prove()
        self.transcript.add_transcript(p1.transcript)
Note

The transcript.hashchain.copy() is just an implementation detail to make sure that the randomness is generated from a single fiat-shamir hashchain.

Now that we have proved that computation, Thaler explains that we need to also prove that the \(a^2\) matrix was calculated correctly before we can make the final verification assertions. To do this, we run the MatMult IP.


        rands = p1.transcript.randoms
        (i, j) = (rands[: len(rands) // 2], rands[len(rands) // 2 :])

        p2 = SumcheckProver(
            [eval_mle(self.a, i + hc) for hc in hypercube(self.logn // 2)],
            [eval_mle(self.a, hc + j) for hc in hypercube(self.logn // 2)],
            eval_mle(self.a2, i + j),
            p1.transcript.hashchain.copy(),
        )
        p2.prove()
        self.transcript.add_transcript(p2.transcript)

We take the \(r\)s that the prover commited to in the first round of Sumcheck and set them to \(i\) and \(j\). Notice that we cannot just pass in evaluations as-is like we did in the first Sumcheck instance. The MatMult IP is defined by: \[fc(i,j)=∑{k\in{\{0,1\}}} ^{log(n)} fa(i,k)·fb(k,j)\] Here, \(\tilde{a}\) is equal to \(fa\) and \(fb\) and we are summing up on the hypercube in order to instantiate a Sumcheck instance that forces the Prover to commit to \(k\).

Now that we have run Sumcheck, we have \(i\), \(j\), and \(k\). This is enough information for the Verifier to prove the validity of the computation. We would just need to evaluate \(\tilde{a}(i+j)\), \(\tilde{a}(k+j)\), and \(\tilde{a}(i+k)\) to complete the verification. This is alot of work for the Verifier and it turns out that it can instead be done by the Prover.

The Useful Subroutine

Thaler describes a useful subroutine which allows work to be offloaded from the Verifier to the Prover. Let \(\ell\) be the line going through points \(\tilde{W}(a)\), \(\tilde{W}(b)\), and \(\tilde{W}(c)\). By making the Prover specify a polynomial \(\tilde{W}\) constrained to \(\ell\), the verifier can prove the validity of \(\tilde{W}(a)\), \(\tilde{W}(b)\), and \(\tilde{W}(c)\) by evaluating \(\tilde{W} \circ \ell\) at a single random point \(r\). In our case, \(\tilde{a}\) is \(\tilde{W}\) so we will continue with \(\tilde{W}\) for clarity. \(\tilde{W} \circ \ell\) is referred to as \(q\) and is sent to the Verifier.

    def line_subroutine(self, a, b, c):
        ts = list(zip(a, b, c))
        w = self.a
        q = [
            eval_mle(w, [eval_ule(t, Felt(i)) for t in ts])
            for i in range(0, 2 * self.logn + 1)
        ]
        return q

In order to specify the polynomial \(q\), the Prover must send \(2 * log(n) + 1\) points to the Verifier. The points can calculated by evaluating \(\tilde{W}\) at the polynomial \(t_i\) where \(t_i\) equals the line defined by \(t_i(0)=a_i\), \(t_i(1)=b_i\), and \(t_i(2)=c_i\). We can easily calulate all \(t_i\) by zipping together \(a\), \(b\), and \(c\) then viewing each entry as polynomial specified by a low degree extension.

        w = self.transcript.a

        wa = eval_ule(q, Felt(0))
        wb = eval_ule(q, Felt(1))
        wc = eval_ule(q, Felt(2))

        ra = Felt.random()
        ts = list(zip(i + j, k + j, i + k))
        r = [eval_ule(t, ra) for t in ts]

        assert len(q) <= 2 * len(i + j) + 1
        assert eval_ule(q, ra) == eval_mle(w, r)

The Verifier needs \(\tilde{W}(a)\), \(\tilde{W}(b)\), and \(\tilde{W}(c)\) in order to perform the last verification step of the Counting Triangles IP. By recieving \(q\) from the Prover, the Verifier knows that it recieved those values as \(q(0)\), \(q(1)\), and \(q(2)\). To be convinced that the values that they recieved were correct, the Verifier picks a random field element \(r*\) (ra in the source code), and uses it to create a point \(r\) that is on line \(\ell\). The Verifier is convinced of \(\tilde{W}(a)\), \(\tilde{W}(b)\), and \(\tilde{W}(c)\) if \(q\) has a maximum degree of \(2 * log(n)\) and if \(q(r*) == \tilde{W}(r)\).

The Final Assertion

Now that we have forced the Prover to give us the values we need with little additional work, we can complete the verification.

        assert wa * claimed_a2 == eval_ule(prover1_round_gv, prover1_round_v)
        assert wb * wc == eval_ule(prover2_round_gv, prover2_round_v)

We make sure that the values that are claimed in the final round of each instance of Sumcheck align with what we now know about \(\tilde{W}(a)\), \(\tilde{W}(b)\), and \(\tilde{W}(c)\).
